essays on the three-hole pipe

World: tabor / drum

Drum heads, historically, were made out of calf, goat, or sheep skin. The Duke of Norfolk in the 15th century made
payments for repairing instruments - a cord for a tabor (1464) and parchment [4d to the taborets for parchment]
to repair a tabor (1481).
Accounts of the household of Thomas and Edmund, the king’s sons
11d to Martinettus the taborer, for the repairing of drums of the king’s sons and for moneys paid by him for
parchment for the covering of the said drums: London, 18 November.

In the 17th century in France, Mersenne (1636) notes that the heads should be made of sheepskin.

makers and sellers
Germany1698 Germany
[Mary Evans 01442196 ]

14th century reenactment14th century reenactment
scraping skin with a lunelarum

15491549 emblem book, Lyons, France

1615 Spanish version of this emblem book, commentary
under the image:
“All others will fall mute, the skin of sheep will be silent, if drums
made of wolf-hide resound. The vellum of sheep so fears the
wolf-skin, that though dead it cannot endure its dead enemy.
Even so Cischas, flayed and turned into a drum, was able
to triumph over the priests of Bohemia.”

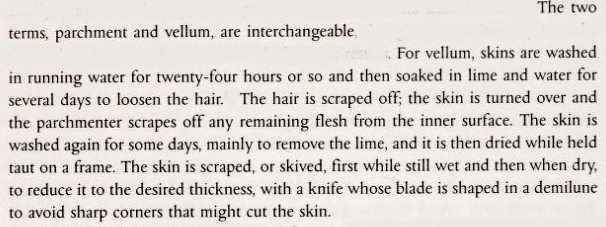

making vellum‘Timpani and Percussion’ by Jeremy Montagu, 2002
possibly 17th century drum-seller: 17th centurydetail from unknown painting
1625 Part of the stock of an ironmongers in Leicester was parchment, drums and tabors.
[Also see 18th century makers and sellers here]

1739 John Linn, bookbinder sold among a host of other items: 1739Newcastle Courant - Saturday 04 August 1739

1730 - 501730-50 Germany 1730-501730-50 Germany

18th century18th century France; making parchment source

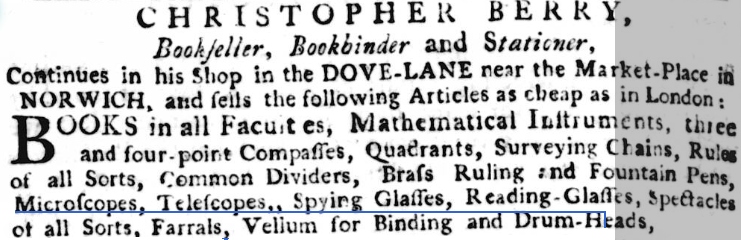

1751 1751The Ipswich Journal - Saturday 03 August 1751

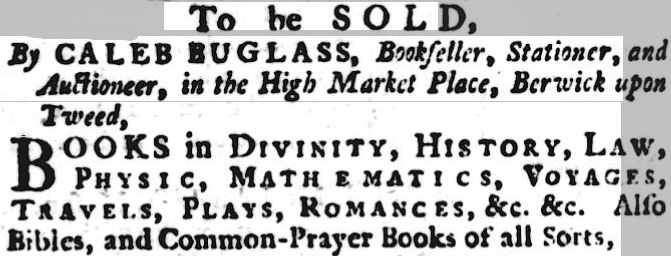

1765 1765

Also… "writing parchment, drum-heads" …etc etc

Newcastle Chronicle - Saturday 06 July 1765
1772 Newpaper advertisement: 1772Manchester Mercury - Tuesday 26 May 1772
1772 Tabors were made of anything suitable:

“Friday last the Glassmakers at Newcastle made a most droll and laughable procession.—
- Their champion and other officers were mounted on asses, …sticks and shovels in place of music,
and empty butter firkins for drums.”

Leeds Intelligencer - Tuesday 10 November 1772

1795 story ‘The Village Assembly’

“…two blind fidlers, and a pipe and tabor, the parchment of which had met with a fraction,
consequently emitted a most horrid report, but every body's oral nerve not being so quick as
mine, it did not appear to affect them. …”

[Ed This passage is followed by a hilarious description of some of the dancers]

'The Observant Pedestrian; or, traits of the heart: in a solitary tour from Cærnarvon to London: in two volumes,
by the author of The mystic cottager. 1795: Vol 2'

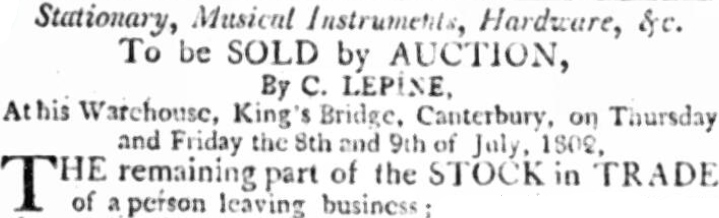

1802 Auction that included “sundry flutes and fifes and drum heads”1802Kentish Weekly Post or Canterbury Journal - Tuesday 06 July 1802

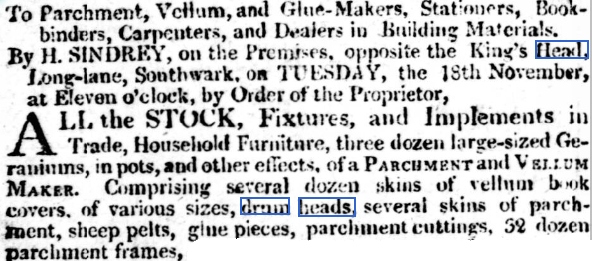

1806 1806Morning Advertiser - Saturday 15 November 1806

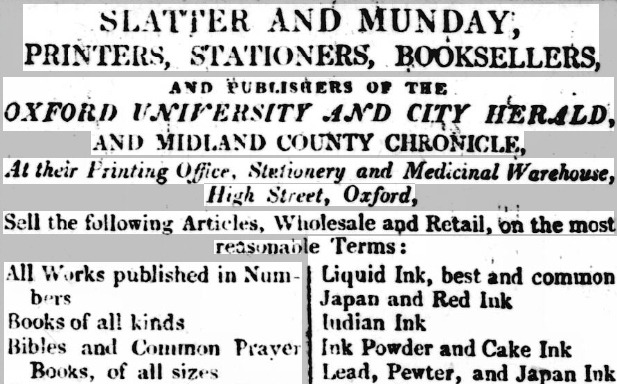

1807 Advertisement. Also listed are drum heads. 1807Oxford University and City Herald - Saturday 23 May 1807
18071807Chester Chronicle - Friday 03 July 1807

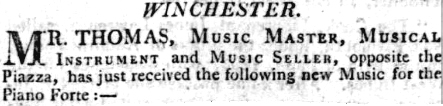

1809 Mr Thomas also sold drum heads and snares: 1809Hampshire Chronicle - Monday 23 January 1809
1817 London advertisement: 1817Public Ledger and Daily Advertiser - Saturday 27 December 1817

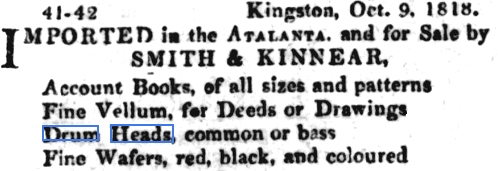

1818 Jamaica 1818Royal Gazette of Jamaica - Saturday 17 October 1818

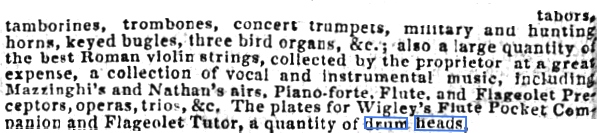

1825 Toplis and Son Auction included: 1825Morning Herald (London) - Saturday 23 July 1825

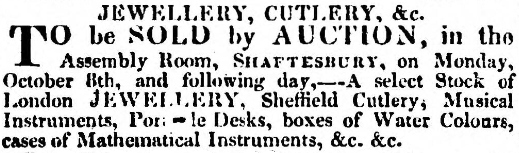

1827 Sale also includes two drum heads and two sticks1827Salisbury and Winchester Journal - Monday 08 October 1827

1843 new inventions: a case heard in the Vice Chancellors’ Courts [part]:1843English Chronicle and Whitehall Evening Post - Saturday 11 November 1843

More information on this case in the Morning Herald (London) - Thursday 02 July 1846, pages 6, 7

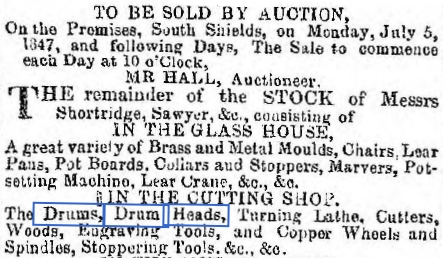

18471847Newcastle Courant - Friday 25 June 1847

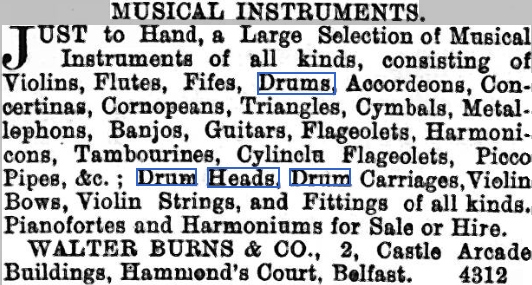

1877 1877Belfast Telegraph - Tuesday 09 January 1877

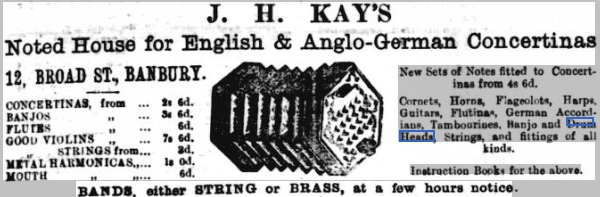

1879 1879Banbury Advertiser - Wednesday 24 December 1879

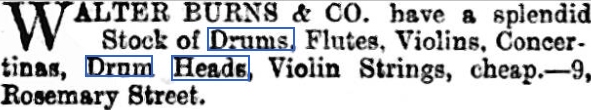

1881 1881Belfast Telegraph - Monday 27 June 1881

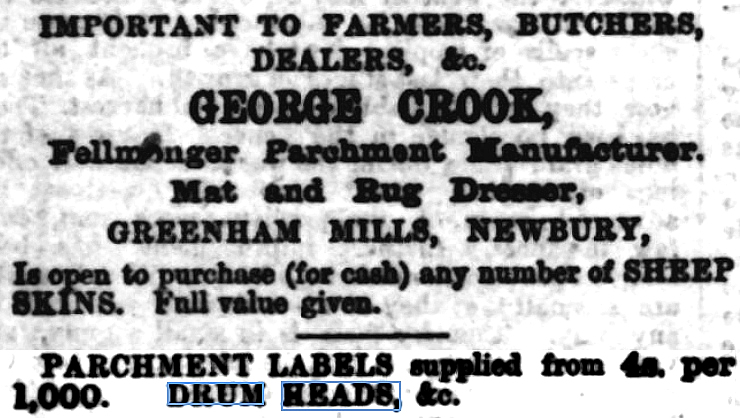

1881 1881Newbury Weekly News and General Advertiser - Thursday 14 July 1881

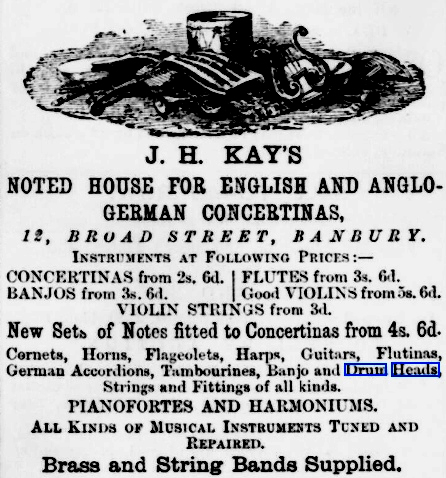

18821882Banbury Guardian - Thursday 16 February 1882 1883 1883Oxfordshire Weekly News - Wednesday 26 September 1883

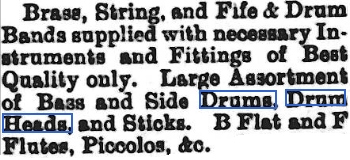

1896 advert [detail] 1896Derry Journal - Monday 17 August 1896

Newspaper advertisements for sales of drum-heads continued into the twentieth century.

19th century Oxfordshire

“In an old Oxfordshire cottage there still hangs from an ancient beam the Tabor of bygone days, no longer
to set the feet a-going, but to act as a weather prophet by the stretching of its time-worn skin.”

‘Old English Instruments of Music - Their History and Character 1911’ Galpin, Francis W. page 150

1890 assembling drums in France 1890

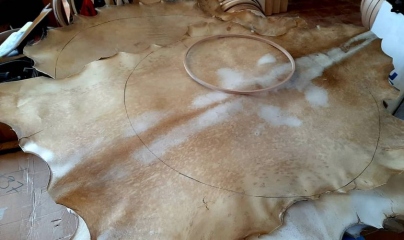

goat skinsgoat skins on both drum heads
21st century maker21st century, Leon, Spain

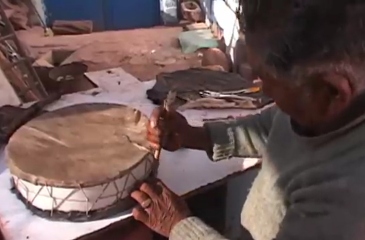

20082008 Atacama, Chile

re-use of parchment

1532-1564 story that mentions recycling a legal document written on parchment:

“ … But what harm had poor I done? cried Trudon, hiding his left eye with his kerchief, and showing his tabour
 cracked on one side: … they have also broke my harmless drum. Drums indeed are commonly beaten at weddings,
— and it is fit they should; but drummers are well entertained, and never beaten… Brother, said the lame catchpole,
never fret thyself; I will make thee a present of a fine, large, old patent, which I have here in my bag, to patch up
thy drum…”

‘The Horrible and Terrifying Deeds and Words of the Very Renowned Pantagruel King of the Dipsodes,
Son of the Great Giant Gargantua’ by François Rabelais, chapter 12
Great books of the Western World by Encyclopaedia Britannica, pub 1986

England, cases heard at The Old Bailey, London and in the newspaper:
6th September 1693
John Redshaw was arraigned for stealing a parcel of Parchment Writings, value 200 l. from one John Day
on the King's Highway, but no Evidence coming against him, he was acquitted .”

17th January 1739
"124. of London, Gent . was indicted, for that he, on the 28th of October , &c. with Force and Arms,
in the Parish of St. Dunstan in the West , did feloniously steal, &c. a certain Parchment Writing, …
the large Pieces the Witness's Wife sold at a Turner's Shop, to make Drum-heads. …"

1739 theft of parchment, trial account:
  “Gent… did feloniously steal, &c. a certain Parchment Writing,…the Prisoner often came into that Office,
and into the Record-Room, and frequently made use of those Opportunities to take away a great Number
of Records, Bills in Chancery, Answers, and Commissions issued out of Chancery to assign the Bounds
of Manors, &c… the next Use was, to dispose of the Parchments themselves, which he did to various
Persons in various Employments: … one Lulham, a Confederate with the Prisoner, made a Discovery
before the Lord Chief Justice of the King's Bench, of his having at various Times received many of these
Records, sold the Stamps, and dispos'd of the Parchment, to make Glew, Drum-Heads, and Taylors
Measures, &c. &c”

Proceedings of the Old Bailey, 17th January 1739, t17390117-45

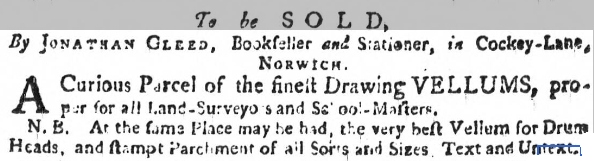

17481748The Ipswich Journal - Saturday 19 March 1748

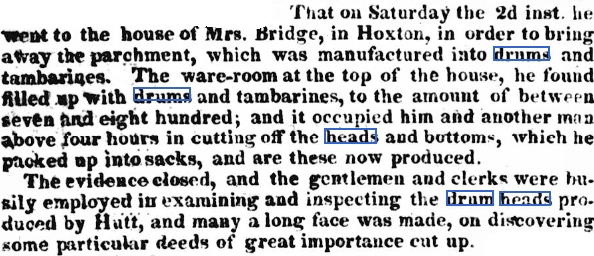

1816 theft of legal documents written on parchment 1816Bell's Weekly Messenger - Sunday 17 March 1816

1816 “CHARLES RICHARD HURD and RICH-ARD KILMINSTER were indicted for stealing,
on the 6th of November one hundred pounds weight of parchment, value 5l
I have the care of the bills and answers at their office. In the month of November last, I missed four bundles
of bills and answers, and twenty three bundles of replications. I suppose I missed from one to two hundred
weight. I know the two prisoners by their being writers in the office. They are father and son-in-law.
In consequence of some information, I went to Mrs. Bridges, Drum-maker, at Hoxton, on the last day of February.
I found there a great quantity of the parchment which I had lost, made up into drums and tambarines.

re-use of parchmentJoe Powell's tabor and stick.This tabor is a fairly standard C19th shallow morris tabor, constructed
from a cheese box with second-hand parchment drumheads.  Pitt Rivers Museum, Oxford

Photog Phil Day

1834 theft of parchment, trial account:

 EDWARD GRAY and WILLIAM SHELLEY were indicted for stealing, on the 20th of November,
5lbs. of parchment, value 1s. 6d.
“police-constable G 145: I saw the two prisoners—Shelley had a bundle under his arm—I asked what it was
—he said some parchment which belonged to that young man, (pointing to Gray who was behind him,) and it
was some that his master had given him… Shelley said it was some that Gray bought of his master, that he had
given it to him to carry, and they were going to Whitecross-street, to sell it to a drum-maker”

Proceedings of the Old Bailey, 24th November 1834, t18341124-149

The British Columbia Folklore Society writes in 2023:

“The parchment sides—one of which is fitted with a snare, should, we are told, be cut from an old will or testament,
because the skins upon which these were engrossed were peculiarly resonant!”


tabors / drums on ships
see here for details of pipes and tabors taken on ships for signalling and dancing. 1834Shipping and Mercantile Gazette - Tuesday 28 November 1843

drums with rims
taborsdifferent styles of tabor

11th century11th century ivory box lid, Constantinople

18th century painting18th century painting France

In Victorian times, in England, when men were demobbed from the army they often took their regimental drums with them.
Many pandean pipe players are pictured playing these drums.
19thc century19th century England 19th century19th century England, side

1964Tabor drum made in 1964 by Miss Perrott
of Gloucester, England
1964close-up of drum - the shell is decorated with a old style map of Gloucestershire in colour-washed pencil under varnish.
20142014 Basque
Tamboril from Castile and León, Spain tamboril Spaintamboril Spain
20222022 Leon, Spain

tabors / drums without rims
Bargello chess board11460-1470 Bargello chess board rim
southern Netherlands/Spain
15801580 Germany
1580 close-up
before 1500Before 1500 Flanders
before 1500 1541 Mary Rose1541 Mary Rose England
14831483 painting, Spain 15111511 woodcut, Germany
17th century17th century Italy, sketch 18th century France18th century France
This type of drum is popular in many parts of Occitania
(Provence, Bas Languedoc and Gascony).

tabor strap
around neck
13th centuryend 13th century England
13001300 Bologne, Italy
1400 France1400 France mid 15th century Swedenmid 15th century Sweden 18451845 France
hanging from little finger

before 1500Before 1500 Flanders

1515 Germany1515 Germany 1541 Holland1541 print Holland
hanging from wrist 15th century Germany15th century Germany
1540 England1540 England f.98v
1596 Germany1596 Germany 1600 England1600 England

17451745 painting England

Chile2022 Chile
Elizabthan20th century England 'Elizabethan'
hanging from forearm woman taborer1440

14851485-1499 Tours, France


15th century France15th century manuscript France 16th or 17th century16th or 17th century, glass England
1780's Peru
playing for costumed dancing

FranceFrance Winsome Bartlettsource England 20th century
over one shoulder
13th century Spain13th century Spain
playerc.1350 Belgium, probably Tournai
15th century Italy15th century Italy
1675-1699
1675-1699

18th century tiles18th century tiles, Portugal

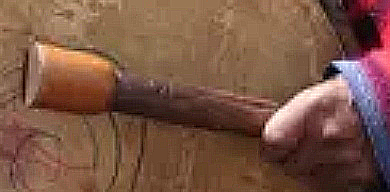

2021 Japan2021 Japan playerplayer Ecuador
1675-1699 biblcal reference,  Northern Netherlands
2024
2024

2024 Spain - strap is a useful holder
for pipe and drumstick
around waist 1412 France1412 France more on straps here

 In Spain the position of the strap depends on the instrument that accompanies it. The drum hangs with a shoulder strap
in the case of long flutes (Chiflo, Pito, Txistu, Silbo, Chirula ...) and sometimes of the wrist (Ibizan flabiol) or, as in the
case of the Mallorcan flabiol, between the index finger and the thumb.


the snare
The snare is across the top drum head; sometimes there are two snares, bells or other items to make a louder rattle
when the drum is beaten.
13401340 manuscript, England

1457-14701457-1470 drum with bells on the snare
Cathédrale Notre-Dame, Rouen, Normandie, Seine-Maritime, France

1894 “ An old musician assured
me that in his early youth he knew
a very old gentleman who yet
played the pipe and tabor ;
the latter had three or four horse-
hairs stretched over the bottom
which produced a soft kind of buzz.”

‘Military music : a history of wind-instrumental bands’ by Kappey, J. A.

In Bolivia the drum is equipped with a 'chirlera'.  This is a rope with thorns, splinters of cane or wooden rods,
placed on the non-struck head, which produces a buzzing sound.

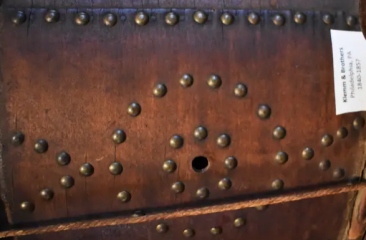

hole in tabor / drum side
drumunknown medieval manuscript 14th century Italy14th century Italy medievalmedieval unknown
13251325 Netherlands 1425 France1425 France devil
15th century15th century France
15531553 Italy

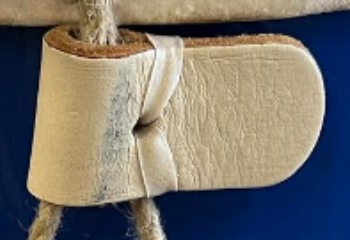

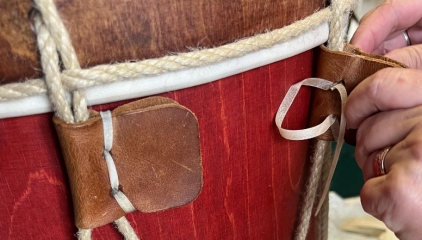

buffs - rope tensioning devices - ears
15401540 Netherlands
Late 17th Early 18thclate 17th/early 18th century army drum, Sweden

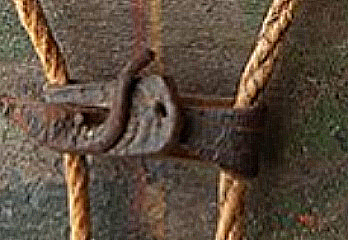

1828 1828 Mexico

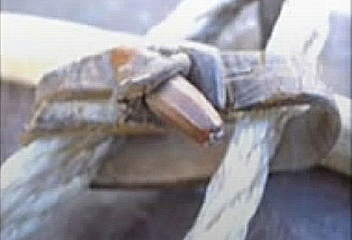

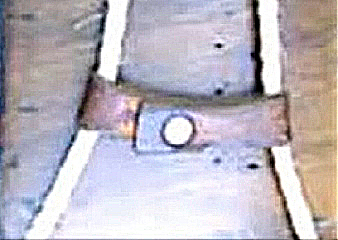

Spain buffSpanish buff - rivited Spain buffSpanish buff - with toggle

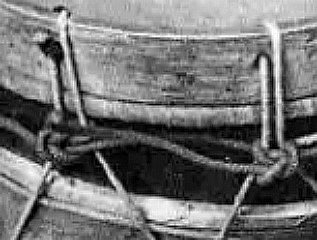

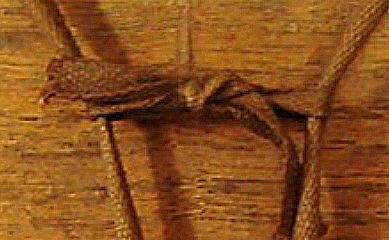

19th century19th century London, England
'Musical Instruments. Catalogue in the V and A' by Anthony Baines
19th century19th century England
1880's1880's USA
18921892 USA
1890's1890's USA
1940's
1940's USA
21st century21st century davul, Turkey

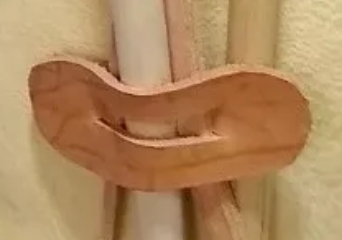

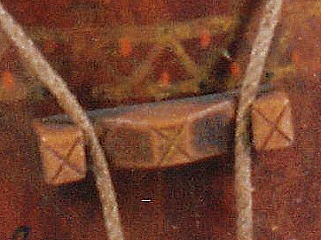

19101910 Catalonia, Spain traditional Argentinatraditional Legüero Bombo, Argentina
20242024 Early Music Shop kit, England 20242024 Muzikkon, Dublin, Ireland

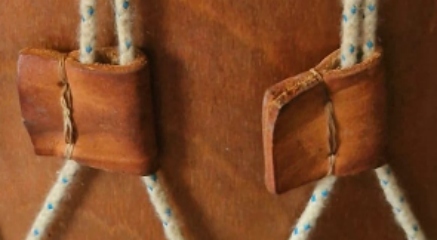

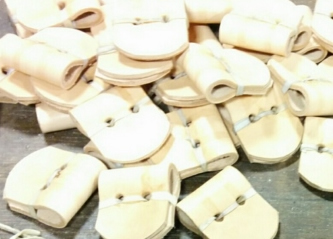

buffssource USA - sewn 1976 England1976 England - hand-sewn
2023 2023
2023 Buffs sewn with tape rather than thread, Marcus Music England
Spain2024 Spain
20242024 Basque country, Spain
21st century Harms Historical Percussion, USA
modern buff Brazilmodern buffalo leather tensioner, Brazil
20th century20th century England 20242024 buffs by Xixo Luthier, Catalonia, Spain

Drumstick

In central and west Mexico 1300-1520 AD drumsticks were fashioned from the bones of recently dispatched sacrificial victims or enemies killed in battle.

'The missing femur at the Mitla Fortress and its implications'
Antiquity / Volume 84 / Issue 326 / December 2010

1863 Spanish1863 Spain

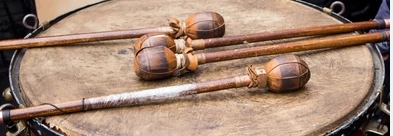

leatherleather, unknown details
1880's1880's wood drum stick USA

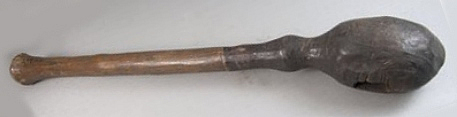

late 19th or early 20th centurylate 19th-early 20th century drumstick USA
20th century drumstick20th century drumstick that belonged to Alejandro Olazarán Salanueva (1894–1973) a Capuchin friar from Estella, Basque country, Spain
probably 20th centuryprobably 20th century drumstick, Las Hurdes, Extremadura, Spain

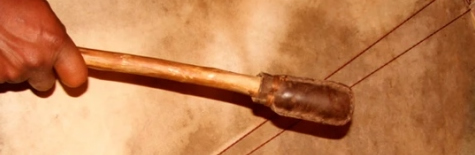

2020 stick2020 drumstick Peru

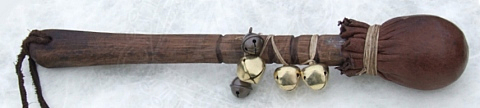

20232023 Czech Republic for reenactment
Pujili, Ecuador

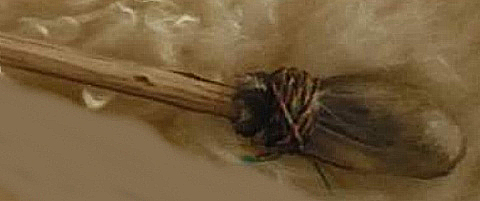

ArgentinaArgentina page 6

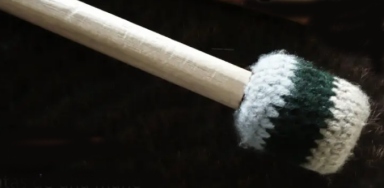

Latin America

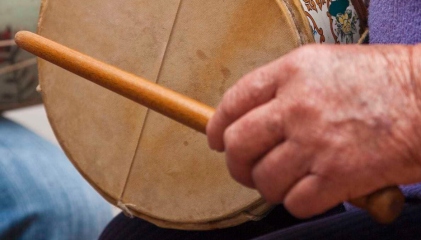

21st century21st century Formentera, Spain
20242024 carved

drum decoration
studsNavarre, Spain 1840-18571840-1857 USA
painted
early 20th centuryearly 20th century USANew England, USA painted and studded
20th century20th century tamborí, Catalonia, Spain Ibiza, Spain
carved tambourin decoration21st century tambourin decoration, Provence, France

rope fixing detail

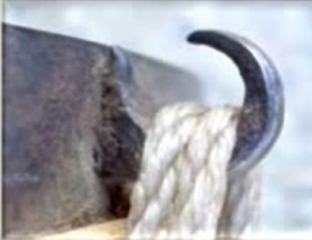

Spainish hooksSpanish hook, Leon

strap fixture
strap fixtureSpain - metal ring

more details of Spanish drums here

top of page
